Somnath Machine Tools

Products
Heavy Duty Lathe Machine
Heavy Duty Lathe Machine
» Major Specifications
Descriptoin 5'-6" 7' 9' 10' 12'
Center Height 250mm 250mm 250mm 250mm 250mm
Spindle Bore 52mm 52mm 52mm 52mm 52mm
Width of Bed 324mm 324mm 324mm 324mm 324mm
Admit Between Center 550mm 1025mm 1675mm 1980mm 2500mm

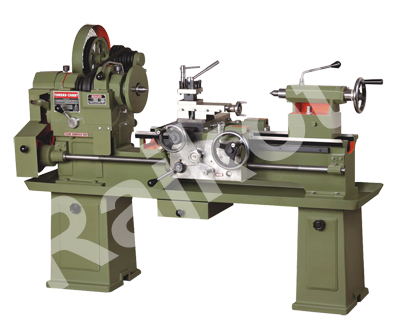

Medium Duty Lathe Machine
» Major Specifications
Descriptoin 4'-6" 5'-6" 6'
Center Height 215mm 215mm 215mm
Spindle Bore 52mm 52mm 52mm
Width of Bed 279mm 279mm 279mm
Admit Between Center 410mm 710mm 860mm

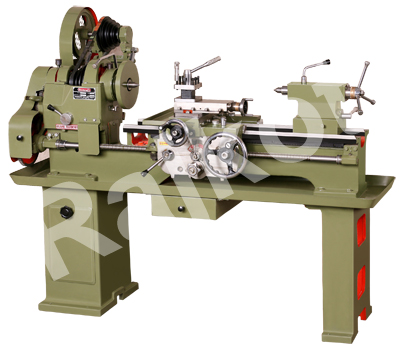

Light Duty Lathe Machine
» Major Specifications
Descriptoin 4'-6" 5'-3" 6'
Center Height 165mm 165mm 165mm
Spindle Bore 40mm 40mm 40mm
Width of Bed 238mm 238mm 238mm
Admit Between Center 635mm 865mm 1090mm

» Product Range
BED LENGTH : 2'/2' TO 28'
CENTER HEIGHT UP TO : 48"
SPINDLE BORE UP TO : 315 mm


Extra Heavy Duty Lathe Machine
